3588 Linux HDMI增加特殊分辨率
此方式为强制输出，不读EDID信息。
0 参考链接
- 最有用https://redmine.rpdzkj.cn/attachments/834
- https://blog.csdn.net/xie__jin__cheng/article/details/144964370
- https://blog.csdn.net/ewin2012/article/details/132513908
- https://blog.csdn.net/u010936265/article/details/134227945
- https://www.forlinx.com/article_view_970.html
- 这个应该是可以兼容特殊分辨率和普通分辨率的教程，可惜要viphttps://blog.csdn.net/qq_46030455/article/details/140802496
- 这个教程连uboot都改了https://blog.csdn.net/qq_65999385
1 环境
- RK3588
- Linux
2 获取屏幕timing屏参
使用x86 win PC获取

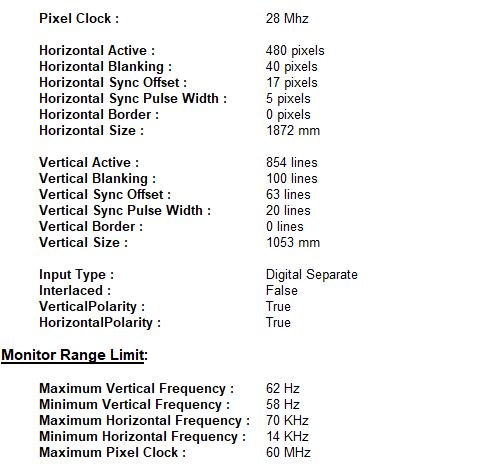

将屏幕通过HDMI接入win PC上，屏幕正常显示后，使用EDID读取软件(如ELDIM-EDIDviewerhttps://eldim-edidviewer.software.informer.com/4.0/)进行读取，如下图所示：
可以方便地读取到诸如水平前后肩之类的信息。
使用3588获取
kernel/drivers/gpu/drm/bridge/synopsys/dw-hdmi-qp.c文件中，
define DEBUG应该就会在插入HDMI时，内核打印读取到的EDID信息，具体没有尝试过
- 相关代码
if (edid) { dev_dbg(hdmi->dev, "got edid: width[%d] x height[%d]\n", edid->width_cm, edid->height_cm);
kernel/include/linux/dev_printk.h
#if defined(CONFIG_DYNAMIC_DEBUG) || \
(defined(CONFIG_DYNAMIC_DEBUG_CORE) && defined(DYNAMIC_DEBUG_MODULE))
#define dev_dbg(dev, fmt, ...) \
dynamic_dev_dbg(dev, dev_fmt(fmt), ##__VA_ARGS__)
#elif defined(DEBUG)
#define dev_dbg(dev, fmt, ...) \
dev_printk(KERN_DEBUG, dev, dev_fmt(fmt), ##__VA_ARGS__)
#else
#define dev_dbg(dev, fmt, ...) \
({ \
if (0) \
dev_printk(KERN_DEBUG, dev, dev_fmt(fmt), ##__VA_ARGS__); \
})
#endif
3 修改代码
3.1 增加屏参
kernel/drivers/gpu/drm/bridge/synopsys/dw-hdmi-qp.c
- 这个文件中，需要增加特殊的屏参，以及取消EDID的读取，并注释掉不用的屏参。

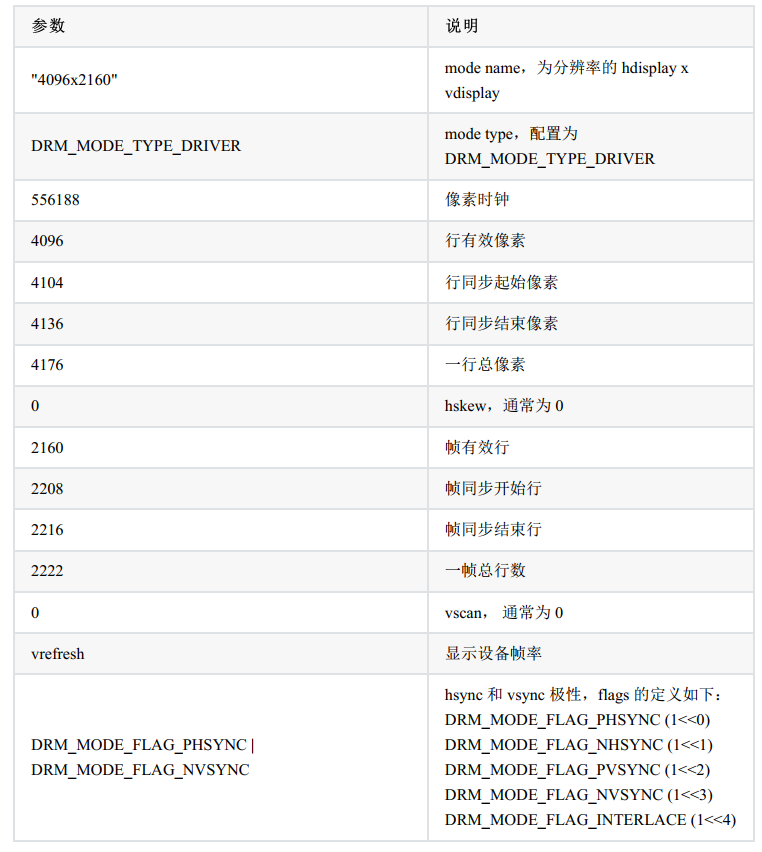

屏参含义如下
/* 0x58 - [email protected] RB */ { DRM_MODE("4096x2160", DRM_MODE_TYPE_DRIVER, 556188, 4096, 4104, 4136, 4176, 0, 2160, 2208, 2216, 2222, 0, DRM_MODE_FLAG_PHSYNC | DRM_MODE_FLAG_NVSYNC) },
- 具体修改如下 ```diff diff –git a/kernel/drivers/gpu/drm/bridge/synopsys/dw-hdmi-qp.c b/kernel/drivers/gpu/drm/bridge/synopsys/dw-hdmi-qp.c index 4c8fd805d..0a278df15 100644 — a/kernel/drivers/gpu/drm/bridge/synopsys/dw-hdmi-qp.c +++ b/kernel/drivers/gpu/drm/bridge/synopsys/dw-hdmi-qp.c @@ -141,41 +141,46 @@ static const struct dw_hdmi_audio_tmds_n common_tmds_n_table[] = { };
static const struct drm_display_mode dw_hdmi_default_modes[] = {
- /* 16 - 1920x1080@60Hz 16:9 */
- { DRM_MODE(“1920x1080”, DRM_MODE_TYPE_DRIVER, 148500, 1920, 2008,
- 2052, 2200, 0, 1080, 1084, 1089, 1125, 0,
- // /* 16 - 1920x1080@60Hz 16:9 */
- // { DRM_MODE(“1920x1080”, DRM_MODE_TYPE_DRIVER, 148500, 1920, 2008,
- // 2052, 2200, 0, 1080, 1084, 1089, 1125, 0,
-
// DRM_MODE_FLAG_PHSYNC DRM_MODE_FLAG_PVSYNC), - // .picture_aspect_ratio = HDMI_PICTURE_ASPECT_16_9, },
- // /* 2 - 720x480@60Hz 4:3 */
- // { DRM_MODE(“720x480”, DRM_MODE_TYPE_DRIVER, 27000, 720, 736,
- // 798, 858, 0, 480, 489, 495, 525, 0,
-
// DRM_MODE_FLAG_NHSYNC DRM_MODE_FLAG_NVSYNC), - // .picture_aspect_ratio = HDMI_PICTURE_ASPECT_4_3, },
- // /* 4 - 1280x720@60Hz 16:9 */
- // { DRM_MODE(“1280x720”, DRM_MODE_TYPE_DRIVER, 74250, 1280, 1390,
- // 1430, 1650, 0, 720, 725, 730, 750, 0,
-
// DRM_MODE_FLAG_PHSYNC DRM_MODE_FLAG_PVSYNC), - // .picture_aspect_ratio = HDMI_PICTURE_ASPECT_16_9, },
- // /* 31 - 1920x1080@50Hz 16:9 */
- // { DRM_MODE(“1920x1080”, DRM_MODE_TYPE_DRIVER, 148500, 1920, 2448,
- // 2492, 2640, 0, 1080, 1084, 1089, 1125, 0,
-
// DRM_MODE_FLAG_PHSYNC DRM_MODE_FLAG_PVSYNC), - // .picture_aspect_ratio = HDMI_PICTURE_ASPECT_16_9, },
- // /* 19 - 1280x720@50Hz 16:9 */
- // { DRM_MODE(“1280x720”, DRM_MODE_TYPE_DRIVER, 74250, 1280, 1720,
- // 1760, 1980, 0, 720, 725, 730, 750, 0,
-
// DRM_MODE_FLAG_PHSYNC DRM_MODE_FLAG_PVSYNC), - // .picture_aspect_ratio = HDMI_PICTURE_ASPECT_16_9, },
- // /* 17 - 720x576@50Hz 4:3 */
- // { DRM_MODE(“720x576”, DRM_MODE_TYPE_DRIVER, 27000, 720, 732,
- // 796, 864, 0, 576, 581, 586, 625, 0,
-
// DRM_MODE_FLAG_NHSYNC DRM_MODE_FLAG_NVSYNC), - // .picture_aspect_ratio = HDMI_PICTURE_ASPECT_4_3, },
- // /* 2 - 720x480@60Hz 4:3 */
- // { DRM_MODE(“720x480”, DRM_MODE_TYPE_DRIVER, 27000, 720, 736,
- // 798, 858, 0, 480, 489, 495, 525, 0,
-
// DRM_MODE_FLAG_NHSYNC DRM_MODE_FLAG_NVSYNC), - // .picture_aspect_ratio = HDMI_PICTURE_ASPECT_4_3, },
- /* 4 - [email protected] 16:9 */
- { DRM_MODE(“480x854”, DRM_MODE_TYPE_DRIVER, 28000, 480, 497,
- 502, 520, 0, 854, 917, 937, 954, 0, DRM_MODE_FLAG_PHSYNC | DRM_MODE_FLAG_PVSYNC), .picture_aspect_ratio = HDMI_PICTURE_ASPECT_16_9, },
- /* 2 - 720x480@60Hz 4:3 */
- { DRM_MODE(“720x480”, DRM_MODE_TYPE_DRIVER, 27000, 720, 736,
- 798, 858, 0, 480, 489, 495, 525, 0,
-
DRM_MODE_FLAG_NHSYNC DRM_MODE_FLAG_NVSYNC), - .picture_aspect_ratio = HDMI_PICTURE_ASPECT_4_3, },
- /* 4 - 1280x720@60Hz 16:9 */
- { DRM_MODE(“1280x720”, DRM_MODE_TYPE_DRIVER, 74250, 1280, 1390,
- 1430, 1650, 0, 720, 725, 730, 750, 0,
-
DRM_MODE_FLAG_PHSYNC DRM_MODE_FLAG_PVSYNC), - .picture_aspect_ratio = HDMI_PICTURE_ASPECT_16_9, },
- /* 31 - 1920x1080@50Hz 16:9 */
- { DRM_MODE(“1920x1080”, DRM_MODE_TYPE_DRIVER, 148500, 1920, 2448,
- 2492, 2640, 0, 1080, 1084, 1089, 1125, 0,
-
DRM_MODE_FLAG_PHSYNC DRM_MODE_FLAG_PVSYNC), - .picture_aspect_ratio = HDMI_PICTURE_ASPECT_16_9, },
- /* 19 - 1280x720@50Hz 16:9 */
- { DRM_MODE(“1280x720”, DRM_MODE_TYPE_DRIVER, 74250, 1280, 1720,
- 1760, 1980, 0, 720, 725, 730, 750, 0,
-
DRM_MODE_FLAG_PHSYNC DRM_MODE_FLAG_PVSYNC), - .picture_aspect_ratio = HDMI_PICTURE_ASPECT_16_9, },
- /* 17 - 720x576@50Hz 4:3 */
- { DRM_MODE(“720x576”, DRM_MODE_TYPE_DRIVER, 27000, 720, 732,
- 796, 864, 0, 576, 581, 586, 625, 0,
-
DRM_MODE_FLAG_NHSYNC DRM_MODE_FLAG_NVSYNC), - .picture_aspect_ratio = HDMI_PICTURE_ASPECT_4_3, },
- /* 2 - 720x480@60Hz 4:3 */
- { DRM_MODE(“720x480”, DRM_MODE_TYPE_DRIVER, 27000, 720, 736,
- 798, 858, 0, 480, 489, 495, 525, 0,
-
DRM_MODE_FLAG_NHSYNC DRM_MODE_FLAG_NVSYNC), - .picture_aspect_ratio = HDMI_PICTURE_ASPECT_4_3, }, };
enum frl_mask { @@ -2296,7 +2301,8 @@ static int dw_hdmi_connector_get_modes(struct drm_connector *connector) return -ENOMEM; memcpy(edid, edid_blob_ptr->data, edid_blob_ptr->length); } else {
- edid = drm_get_edid(connector, hdmi->ddc);
- // edid = drm_get_edid(connector, hdmi->ddc);
- edid = NULL; hdmi->hdcp_caps = dw_hdmi_qp_hdcp_capable(hdmi); }
@@ -2382,6 +2388,7 @@ static int dw_hdmi_connector_get_modes(struct drm_connector *connector) info->color_formats = 0;
dev_info(hdmi->dev, “failed to get edid\n”);- dev_info(hdmi->dev, “dw-hdmi-qp.c\n”); }
@@ -2475,7 +2482,8 @@ static void dw_hdmi_attach_properties(struct dw_hdmi_qp *hdmi) if (hdmi->plat_data->get_grf_color_fmt) color = hdmi->plat_data->get_grf_color_fmt(data);
- val = (hdmi_readl(hdmi, PKT_VSI_CONTENTS1) » 8) & 0xffffff;
- // val = (hdmi_readl(hdmi, PKT_VSI_CONTENTS1) » 8) & 0xffffff;
- val = HDMI_FORUM_OUI; if (val == HDMI_FORUM_OUI) hdmi->allm_enable = true; else
### 3.2 设备树修改
需要使能clock：hdptxphy_hdmi_clk0和hdptxphy_hdmi_clk1
- 修改如下
```diff
diff --git a/kernel/arch/arm64/boot/dts/rockchip/NK-6A13_V0A_linux.dtsi b/kernel/arch/arm64/boot/dts/rockchip/NK-6A13_V0A_linux.dtsi
index b1ec42e12..5d66d023e 100755
--- a/kernel/arch/arm64/boot/dts/rockchip/NK-6A13_V0A_linux.dtsi
+++ b/kernel/arch/arm64/boot/dts/rockchip/NK-6A13_V0A_linux.dtsi
@@ -96,6 +96,8 @@
&display_subsystem {
memory-region = <&drm_logo>;
memory-region-names = "drm-logo";
+ clocks = <&hdptxphy_hdmi_clk0>, <&hdptxphy_hdmi_clk1>;
+ clock-names = "hdmi0_phy_pll", "hdmi1_phy_pll";
};
&dfi {
diff --git a/kernel/arch/arm64/boot/dts/rockchip/NK-6A13_V0A.dtsi b/kernel/arch/arm64/boot/dts/rockchip/NK-6A13_V0A.dtsi
index 6f4077f2b..b516341c9 100755
--- a/kernel/arch/arm64/boot/dts/rockchip/NK-6A13_V0A.dtsi
+++ b/kernel/arch/arm64/boot/dts/rockchip/NK-6A13_V0A.dtsi
@@ -536,6 +536,14 @@
status = "disabled";
};
+&hdptxphy_hdmi_clk0 {
+ status = "okay";
+};
+
+&hdptxphy_hdmi_clk1 {
+ status = "okay";
+};
+
#if 1
/* Should work with at least 128MB cma reserved above. */
&hdmirx_ctrler {
