RJ45网口灯配置
1 原理

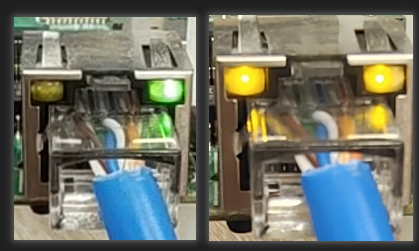

1.1 实际效果
RJ45接口一般有左右两个Led灯，用于指示网络连接状态，实际上，一侧的灯珠位置上封装了两颗不同颜色的led灯（比如黄色和绿色）,这样这个位置就可以按需显示不同颜色的灯光。
1.2 电路原理

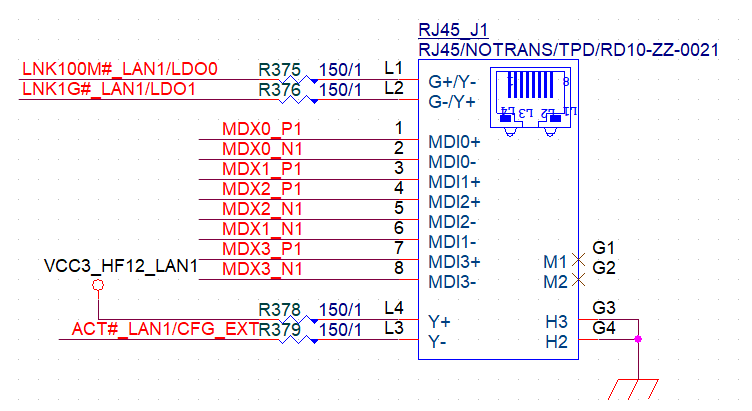

原理图上，可以看到LED灯有三个控制引脚，有两个灯珠那个位置两个灯的极性是反向的

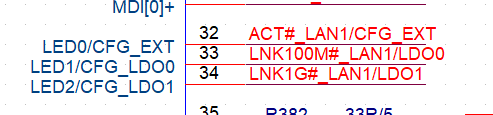

这三个LED信号是由PHY芯片控制的，以RTL8211F为例
1.3 PHY寄存器配置
查看RTL8211F的datasheet

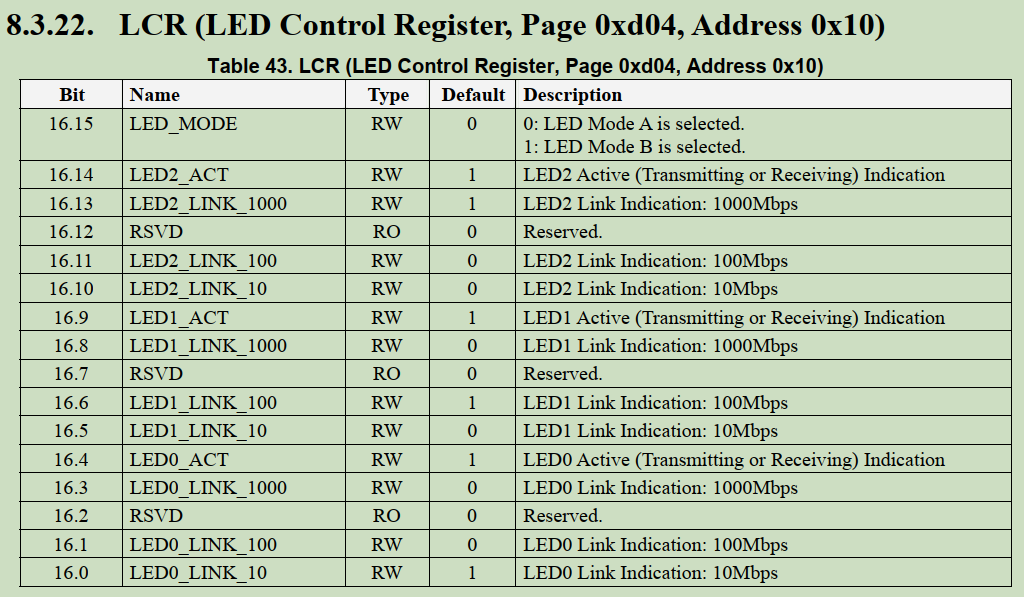

- P47: 三个信号的寄存器配置
-

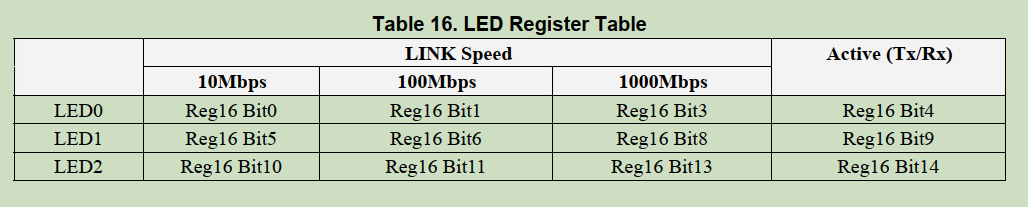

P27: 寄存器位说明
-

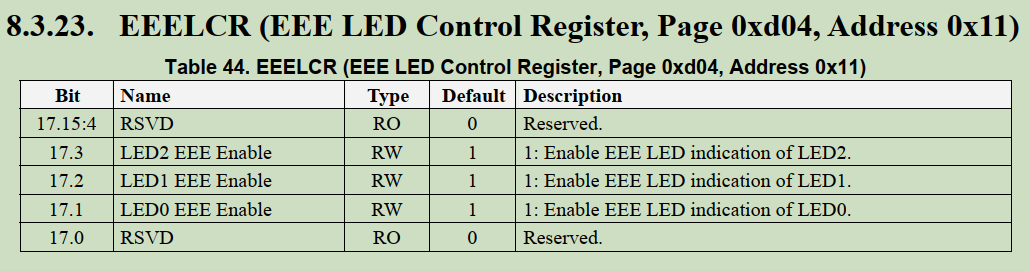

P48: 信号的网口节能状态指示

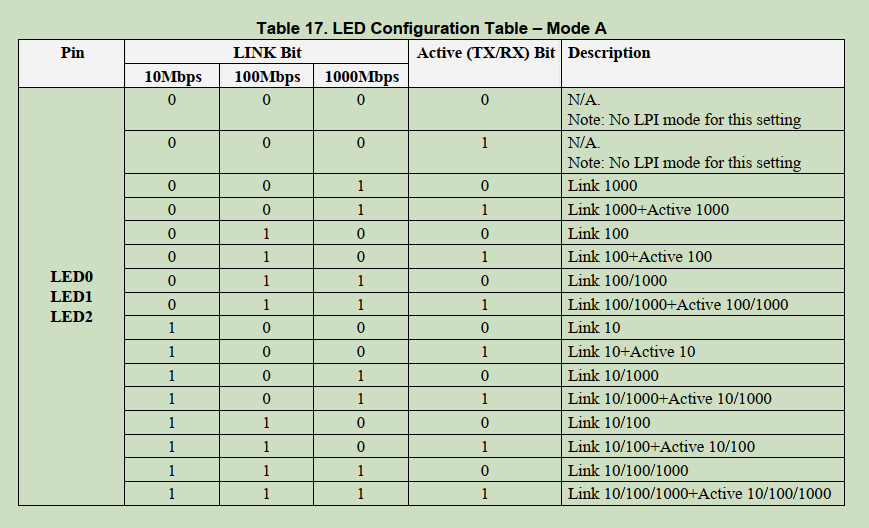

- P28: 模式A的灯状态与寄存器真值表
综上，每个灯信号占用寄存器中的五位（实际4位，中间1位没有作用），根据真值表，配置每一颗LED的寄存器位即可
2 实战配置
2.1 明确需求
左灯指示网络活动，右灯在1000Mps黄灯、100Mbps绿灯、10Mbps不亮
2.2 计算寄存器
// ╔════════════╗
// ║■ ╔══════╗ ■║
// ║╔═╝ ╚═╗║
// ║║ ║║
// ║╚══════════╝║
// ╚════════════╝
| 位置 | LED 编号 | 数值 | 二进制值（MSB-LSB） | 模式/速率 | 状态 | |—|—|—|—|—|—| | 左黄 | LED 0 | 16 | 11011 | 10/100/1000 | +Active 10/100/1000 | | 右绿 | LED 1 | 02 | 00010 | 100 | | | 右黄 | LED 2 | 08 | 01000 | 1000 | |
2.3 修改代码
diff --git a/kernel-5.10/drivers/net/ethernet/stmicro/stmmac/stmmac_main.c b/kernel-5.10/drivers/net/ethernet/stmicro/stmmac/stmmac_main.c
index e14a682e3b..d10bc673c4 100755
--- a/kernel-5.10/drivers/net/ethernet/stmicro/stmmac/stmmac_main.c
+++ b/kernel-5.10/drivers/net/ethernet/stmicro/stmmac/stmmac_main.c
@@ -121,6 +121,14 @@ static void stmmac_exit_fs(struct net_device *dev);
#define STMMAC_COAL_TIMER(x) (jiffies + usecs_to_jiffies(x))
+#define LED_FIX 1
+#ifdef LED_FIX
+#define RTL_8201F_PHY_ID 0x001cc816
+#define RTL_8211E_PHY_ID 0x001cc915
+#define RTL_8211F_PHY_ID 0x001cc916
+#define DP_83848_PHY_ID 0x20005c90
+#endif
+
int stmmac_bus_clks_config(struct stmmac_priv *priv, bool enabled)
{
int ret = 0;
@@ -4986,6 +4994,122 @@ int stmmac_reinit_ringparam(struct net_device *dev, u32 rx_size, u32 tx_size)
return ret;
}
+#ifdef LED_FIX
+static int phy_dp83848_led_fixup(struct phy_device *phydev)
+{
+ int value;
+
+ if (phydev->phy_id != DP_83848_PHY_ID)
+ return 0;
+
+ printk("%s in\n", __func__);
+
+ value = phy_read(phydev, 0x18);
+ value &= ~(1<<2);
+ phy_write(phydev, 0x18, value);
+
+ value = phy_read(phydev, 0x19);
+ value &= ~(1<<5);
+ phy_write(phydev, 0x19, value);
+
+ return 0;
+}
+
+static int phy_rtl8201f_led_fixup(struct phy_device *phydev)
+{
+ int value;
+
+ printk("%s in\n", __func__);
+
+ /* switch to page 7 */
+ value = phy_read(phydev, 31);
+ value &= 0xff00;
+ value |= 0x0007;
+ value = phy_write(phydev, 31, value);
+
+ /* set customized led enable */
+ value = phy_read(phydev, 19);
+ value |= (0x1<<3);
+ phy_write(phydev, 19, value);
+
+ value &= 0x0000;
+ value |= (0x1<<1);
+ value |= (0x1<<7);
+ phy_write(phydev, 17, value);
+
+ /* back to page 0 */
+ value = phy_read(phydev, 31);
+ value &= 0x0000;
+ value = phy_write(phydev, 31, value);
+
+ return 0;
+}
+
+static int phy_rtl8211e_led_fixup(struct phy_device *phydev)
+{
+ int val;
+
+ printk("%s in\n", __func__);
+ val = phy_read(phydev, 3);
+ printk("%s in val=0x%04x\n", __func__, val);
+
+ /*switch to extension page44*/
+ phy_write(phydev, 31, 0x07);
+ phy_write(phydev, 30, 0x2c);
+
+ /*set led1(yellow) act*/
+ val = phy_read(phydev, 26);
+ val &= (~(1<<4));// bit4=0
+ val |= (1<<5);// bit5=1
+ val &= (~(1<<6));// bit6=0
+ phy_write(phydev, 26, val);
+
+ /*set led0(green) link*/
+ val = phy_read(phydev, 28);
+ val |= (7<<0);// bit0,1,2=1
+ val &= (~(7<<4));// bit4,5,6=0
+ val &= (~(7<<8));// bit8,9,10=0
+ phy_write(phydev, 28, val);
+
+ /*switch back to page0*/
+ phy_write(phydev,31,0x00);
+
+ return 0;
+}
+
+// ╔════════════╗
+// ║■ ╔══════╗ ■║
+// ║╔═╝ ╚═╗║
+// ║║ ║║
+// ║╚══════════╝║
+// ╚════════════╝
+#define L_YELLOW_LED 0 //左黄灯
+#define R_GREEN_LED 1 //右绿灯
+#define R_YELLOW_LED 2 //右黄灯
+
+static int phy_rtl8211f_led_fixup(struct phy_device *phydev)
+{
+ unsigned int temp;
+
+ printk("[Witheart] test eth led ctrl start(kernel-5.10/drivers/net/ethernet/stmicro/stmmac/stmmac_main.c)====== %s\n",__FUNCTION__);
+ if(!phydev) return -1;
+ if(phydev->phy_id!=0x001cc916) return -1; /* only for 8211E*/
+
+ // 配置网口LED灯
+ phy_write(phydev, 31, 0xd04); //选择页d04
+ temp = 0x02 << (5 * R_GREEN_LED); //右绿灯表示百兆
+ temp |= 0x08 << (5 * R_YELLOW_LED); //右黄灯表示千兆
+ temp |= 0x1b << (5 * L_YELLOW_LED); //左黄灯表示数据包收发状态
+ phy_write(phydev, 0x10, temp); //写入LED配置寄存器
+ phy_write(phydev, 0x11, 0x00); //关闭EEE节能状态指示
+ phy_write(phydev, 31, 0); //选择页0
+
+ printk("[Witheart] test eth led ctrl end====== %s\n",__FUNCTION__);
+
+ return 0;
+}
+#endif
+
/**
* stmmac_dvr_probe
* @device: device pointer
@@ -5219,6 +5343,22 @@ int stmmac_dvr_probe(struct device *device,
goto error_netdev_register;
}
+#ifdef LED_FIX
+/* register the PHY board fixup */
+ret = phy_register_fixup_for_uid(RTL_8211E_PHY_ID, 0xffffffff, phy_rtl8211e_led_fixup);
+if (ret)
+ pr_warn("Cannot register PHY board fixup.\n");
+ret = phy_register_fixup_for_uid(RTL_8211F_PHY_ID, 0xffffffff, phy_rtl8211f_led_fixup);
+if (ret)
+ pr_warn("Cannot register PHY board fixup.\n");
+ret = phy_register_fixup_for_uid(RTL_8201F_PHY_ID, 0xffffffff, phy_rtl8201f_led_fixup);
+if (ret)
+ pr_warn("Cannot register PHY board fixup.\n");
+ret = phy_register_fixup_for_uid(DP_83848_PHY_ID, 0xffffffff, phy_dp83848_led_fixup);
+if (ret)
+ pr_warn("Cannot register PHY board fixup.\n");
+#endif
+
#ifdef CONFIG_DEBUG_FS
stmmac_init_fs(ndev);
#endif
sequenceDiagram
participant Driver as 驱动代码
participant PHY as RTL8211F芯片
Driver->>PHY: 写寄存器31=0xd04 (切页)
Driver->>PHY: 写寄存器0x10=0x205b (LED模式)
Driver->>PHY: 写寄存器0x11=0x00 (禁用EEE)
Driver->>PHY: 写寄存器31=0 (切回标准页)
PHY->>LED硬件: 依据配置控制引脚电平
Note over LED硬件: 绿灯常亮/黄灯闪烁等
