Anlogic FPGA 编译 synlog 解读
1 日志位置

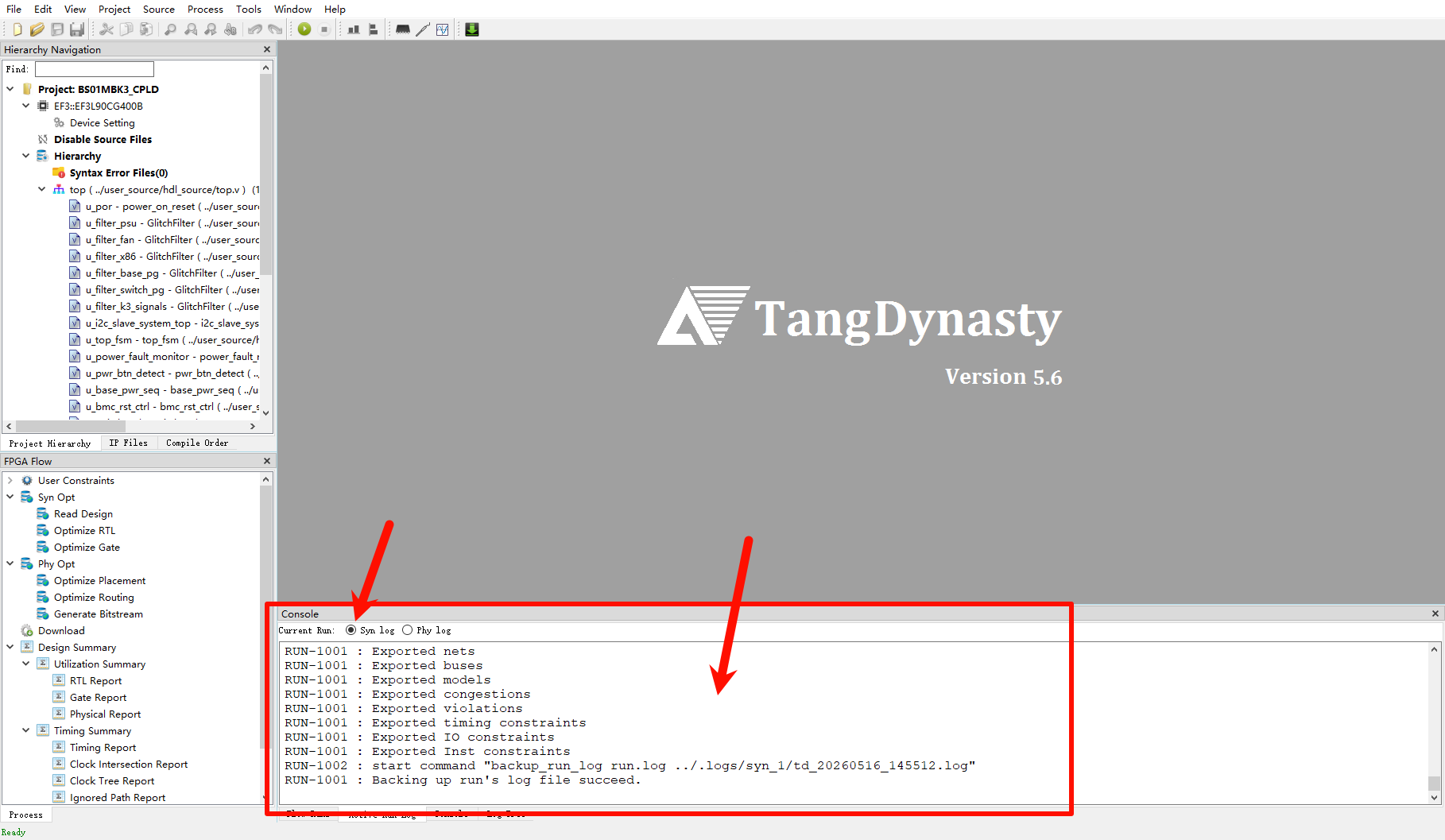

- 编译后的syn log日志在此处查看
2 示例内容
IO Statistics
#IO 327
#input 94
#output 184
#inout 49
LUT Statistics
#Total_luts 6037
#lut4 2763
#lut5 438
#lut6 0
#lut5_mx41 0
#lut4_alu1b 2836
Utilization Statistics
#lut 6037 out of 9280 65.05%
#reg 2083 out of 9280 22.45%
#le 0
#dsp 0 out of 16 0.00%
#bram 0 out of 30 0.00%
#bram9k 0
#fifo9k 0
#pad 327 out of 331 98.79%
#ireg 5
#oreg 88
#treg 0
#pll 0 out of 2 0.00%
Report Hierarchy Area:
+---------------------------------------------------------------------------------------------------------+
|Instance |Module |lut |ripple |seq |bram |dsp |
+---------------------------------------------------------------------------------------------------------+
|top |top |3201 |2836 |2176 |0 |0 |
| u_base_pwr_seq |base_pwr_seq |75 |62 |38 |0 |0 |
| u_bmc_rst_ctrl |bmc_rst_ctrl |41 |61 |37 |0 |0 |
| u_filter_base_pg |GlitchFilter |16 |0 |16 |0 |0 |
| u_filter_fan |GlitchFilter |8 |0 |8 |0 |0 |
| u_filter_k3_signals |GlitchFilter |120 |0 |120 |0 |0 |
| u_filter_psu |GlitchFilter |12 |0 |12 |0 |0 |
| u_filter_switch_pg |GlitchFilter |4 |0 |4 |0 |0 |
| u_filter_x86 |GlitchFilter |6 |0 |6 |0 |0 |
| u_i2c_slave_system_top |i2c_slave_system_top |631 |52 |264 |0 |0 |
| u_k3_nodes_top |k3_nodes_top |1394 |2061 |461 |0 |0 |
| gen_k3_nodes[13]$u_k3_node_ctrl_A |k3_node_ctrl |58 |82 |17 |0 |0 |
| gen_k3_nodes[13]$u_k3_node_ctrl_B |k3_node_ctrl |53 |82 |17 |0 |0 |
| gen_k3_nodes[14]$u_k3_node_ctrl_A |k3_node_ctrl |52 |82 |17 |0 |0 |
| gen_k3_nodes[14]$u_k3_node_ctrl_B |k3_node_ctrl |56 |82 |17 |0 |0 |
| gen_k3_nodes[15]$u_k3_node_ctrl_A |k3_node_ctrl |57 |82 |17 |0 |0 |
| gen_k3_nodes[15]$u_k3_node_ctrl_B |k3_node_ctrl |62 |82 |17 |0 |0 |
| gen_k3_nodes[16]$u_k3_node_ctrl_A |k3_node_ctrl |55 |82 |17 |0 |0 |
| gen_k3_nodes[16]$u_k3_node_ctrl_B |k3_node_ctrl |62 |82 |17 |0 |0 |
| gen_k3_nodes[17]$u_k3_node_ctrl_A |k3_node_ctrl |57 |82 |17 |0 |0 |
| gen_k3_nodes[17]$u_k3_node_ctrl_B |k3_node_ctrl |60 |82 |17 |0 |0 |
| gen_k3_nodes[18]$u_k3_node_ctrl_A |k3_node_ctrl |52 |82 |17 |0 |0 |
| gen_k3_nodes[18]$u_k3_node_ctrl_B |k3_node_ctrl |53 |82 |17 |0 |0 |
| gen_k3_nodes[19]$u_k3_node_ctrl_A |k3_node_ctrl |54 |82 |17 |0 |0 |
| gen_k3_nodes[19]$u_k3_node_ctrl_B |k3_node_ctrl |52 |82 |17 |0 |0 |
| gen_k3_nodes[20]$u_k3_node_ctrl_A |k3_node_ctrl |52 |82 |17 |0 |0 |
| gen_k3_nodes[20]$u_k3_node_ctrl_B |k3_node_ctrl |61 |82 |17 |0 |0 |
| gen_k3_nodes[21]$u_k3_node_ctrl_A |k3_node_ctrl |55 |82 |17 |0 |0 |
| gen_k3_nodes[21]$u_k3_node_ctrl_B |k3_node_ctrl |55 |82 |17 |0 |0 |
| gen_k3_nodes[22]$u_k3_node_ctrl_A |k3_node_ctrl |51 |82 |17 |0 |0 |
| gen_k3_nodes[22]$u_k3_node_ctrl_B |k3_node_ctrl |54 |82 |17 |0 |0 |
| gen_k3_nodes[23]$u_k3_node_ctrl_A |k3_node_ctrl |56 |82 |17 |0 |0 |
| gen_k3_nodes[23]$u_k3_node_ctrl_B |k3_node_ctrl |57 |82 |17 |0 |0 |
| gen_k3_nodes[24]$u_k3_node_ctrl_A |k3_node_ctrl |55 |82 |17 |0 |0 |
| gen_k3_nodes[24]$u_k3_node_ctrl_B |k3_node_ctrl |62 |82 |17 |0 |0 |
| u_por |power_on_reset |1 |19 |19 |0 |0 |
| u_power_fault_monitor |power_fault_monitor |6 |0 |3 |0 |0 |
| u_pwr_btn_detect |pwr_btn_detect |34 |77 |35 |0 |0 |
| u_sgpio_dual_cpld |sgpio_dual_cpld |331 |51 |484 |0 |0 |
| u_switch_ctrl |switch_ctrl |74 |92 |58 |0 |0 |
| u_switch_ctrl_rtl8111h |switch_ctrl_rtl8111h |37 |46 |29 |0 |0 |
| u_switch_ctrl_rtl8127 |switch_ctrl_rtl8127 |37 |46 |29 |0 |0 |
| u_top_fsm |top_fsm |157 |108 |64 |0 |0 |
| u_x86_pwr_seq |x86_pwr_seq |129 |253 |85 |0 |0 |
+---------------------------------------------------------------------------------------------------------+
3 日志解读
3.1 IO Statistics：管脚统计
这一部分记录了芯片引脚的使用情况。
IO Statistics
#IO 327
#input 94
#output 184
#inout 49
- #IO (327)： 整个设计一共使用了 327 个物理管脚。 $94 (\text{input}) + 184 (\text{output}) + 49 (\text{inout}) = 327 (\text{IO})$。
3.2 LUT Statistics：查找表统计（组合逻辑）
LUT（Look-Up Table，查找表）是FPGA实现组合逻辑的核心。这里的统计揭示了逻辑链条的复杂程度。
LUT Statistics
#Total_luts 6037
#lut4 2763
#lut5 438
#lut6 0
#lut5_mx41 0
#lut4_alu1b 2836
- #lut4 / #lut5： 分别代表4输入和5输入的查找表。数字越大，说明设计中存在一些较复杂的逻辑判断。
- #lut4_alu1b (2836)： 这是一个关键指标。它代表配置为算术逻辑单元（ALU）模式的4输入LUT。通常用于实现加法器、计数器或比较器等“加法链/流水线”逻辑。从数据上看，这个设计中有大量的数学运算或计数器。
3.3 Utilization Statistics：整体资源利用率
Utilization Statistics
#lut 6037 out of 9280 65.05%
#reg 2083 out of 9280 22.45%
#le 0
#dsp 0 out of 16 0.00%
#bram 0 out of 30 0.00%
#bram9k 0
#fifo9k 0
#pad 327 out of 331 98.79%
#ireg 5
#oreg 88
#treg 0
#pll 0 out of 2 0.00%
- 逻辑利用率 (#lut: 65.05%) 使用了 6037 个，总共有 9280 个。这是一个非常健康的数字。通常建议逻辑利用率控制在 70%~80% 以下，留有余量可以避免布线拥堵（Routing Congestion），保证时序收敛。
- 寄存器利用率 (#reg: 22.45%) 使用了 2083 个。相比于 65% 的 LUT 利用率，寄存器用得较少。这说明这是一个组合逻辑/运算较重，但时序状态机或流水线相对较浅的设计。
- 专用模块 (DSP / BRAM / PLL: 0%)
- DSP (0%): 没有使用乘法器内核，说明没有复杂的数字信号处理（如大位数乘法、FFT、滤波器）。
- BRAM (0%): 没有使用块内存，意味着设计中没有大容量的FIFO、RAM或ROM。
- PLL (0%): 没有使用锁相环，说明该设计完全依赖外部输入的原始时钟，没有进行倍频或分频。
- 管脚利用率 (#pad: 98.79%) 331个可用管脚里用了327个，只剩4个空余！ 这是一个极度“IO受限（IO-bound）”的设计。
3.4 Report Hierarchy Area：模块资源层级报表
+---------------------------------------------------------------------------------------------------------+
|Instance |Module |lut |ripple |seq |bram |dsp |
+---------------------------------------------------------------------------------------------------------+
|top |top |3201 |2836 |2176 |0 |0 |
| u_base_pwr_seq |base_pwr_seq |75 |62 |38 |0 |0 |
| u_bmc_rst_ctrl |bmc_rst_ctrl |41 |61 |37 |0 |0 |
...
| u_k3_nodes_top |k3_nodes_top |1394 |2061 |461 |0 |0 |
| gen_k3_nodes[13]$u_k3_node_ctrl_A |k3_node_ctrl |58 |82 |17 |0 |0 |
...
| u_sgpio_dual_cpld |sgpio_dual_cpld |331 |51 |484 |0 |0 |
+---------------------------------------------------------------------------------------------------------+
- 表头含义：
lut：模块消耗的普通逻辑查找表。ripple：模块消耗的纹波进位链（即前面的lut4_alu1b，用于加法/计数）。seq：时序逻辑元件（寄存器数量）。
